  • Coiled Tubing BOP

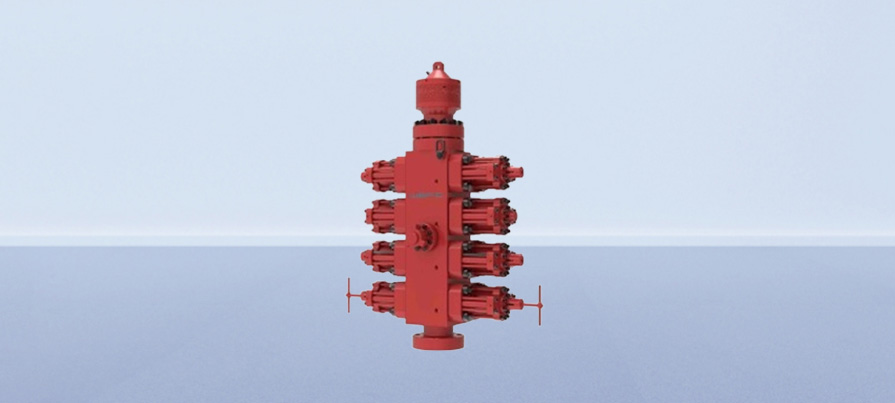

  • The Coiled Tubing Blowout Preventer is designed to provide positive well control for coiled tubing operations in H₂S environments. It is capable of blind sealing, sealing around the tubing string, suspending, and shearing coiled tubing. The Coiled Tubing BOP is primarily hydraulically actuated for opening and closing operations, and equipped with a manual locking mechanism to secure the device in the closed position. The hydraulic actuators feature a removable design, facilitating easy monitoring and maintenance of the rams. By combining different ram types (pipe rams, blind rams, shear rams, hang-off rams, shear/blind rams, hang-off/pipe rams), the Coiled Tubing BOP can be configured to meet the requirements of various pressure control systems.

Product Advantages/Product Highlights

  • Adaptable Connections: Supports various hammer union and flange configurations for maximum job-site compatibility.

  • High-Pressure Hydraulic Operation: Designed for use with standard 3,000 PSI hydraulic power sources.

  • Positive Manual Locking: Rams can be securely manually locked in the closed position.

  • Reliable Safety Override: Manual closing capability ensures safety and control during hydraulic failures.

Performance Parameters

Parameter Name Parameter Content
Rated working pressure 5,000PSI~20,000PSI
Nominal bore 3-1/16~5-1/8
Metal temperature range -59°C to 121°C
Non-metal temperature range Maximum temperature 177°C
Working medium Working medium
