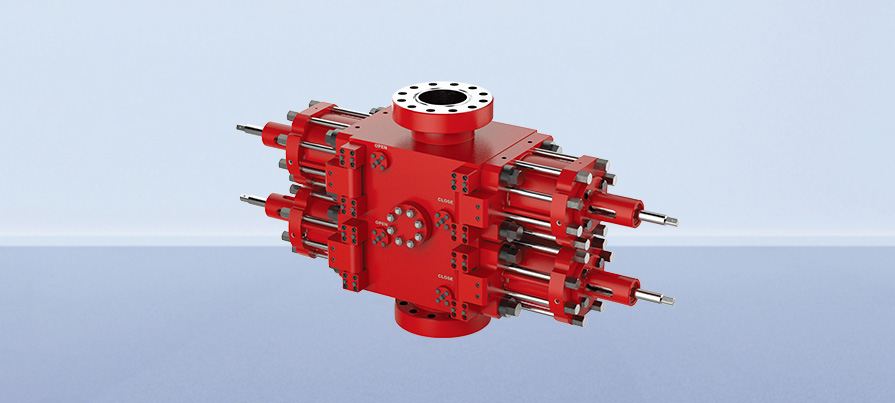

  • Ram BOP
  • Ram BOPs are available in three types: single-ram, double-ram, and multi-ram types. They are primarily used in drilling, workover, well testing, and other operations to control wellhead pressure and prevent overflow or blowouts. Their design and manufacture fully comply with API Specification 16A requirements.

Product Advantages/Product Highlights

  • Annular Sealing: Seals the annular space between the tubing string and the wellbore.

  • Versatile Ram Configurations: Equipped with a full-seal ram to completely seal the wellbore, or a shear ram to shear drilling tools.

  • Tools Sealing: Seal and suspend drilling tools.

  • Redundant Control: Available with manual and hydraulic control options.

Performance Parameters

Parameter Name Parameter Content
Nominal diameter 7-1/16"~26-3/4"
Working pressure 2,000PSI~15,000PSI
Metal Temperature T-0/250°C; T-20/250°C; T-75/250°C
Non-metal Temperature Maximum 177°C
Working medium Petroleum, natural gas, mud, etc.
Product performance requirement PR1~2
