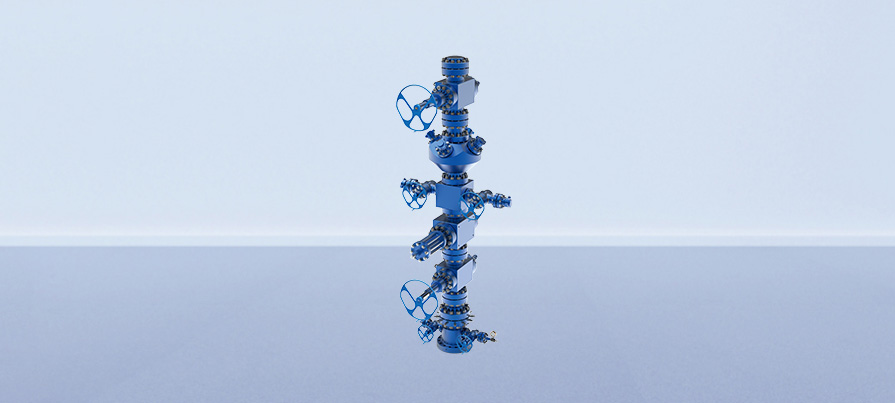

Fracturing tree
WEFIC provides the most advanced fracturing technical solutions and realize the synchronous development with the whole industry. The valves in the main path of our fracturing wellhead are KRSR structure, valve opening and closing laps is reduced by half as compared to the same type of valve, the valve seat seal uses the Bi-directional lip seal ring, the stem seal uses the PEEK material seals with a low friction coefficient and resilient metal stents.

Product Advantages/Product Highlights

Install a hydraulic valve on the main diameter

Remote control can quickly shut down in emergency situations, ensuring high efficiency and safety

Install a union interface at the side outlet of the fracturing head

Quick connection, simple overall design, and easy maintenance

Install a test valve on the upper part of the fracturing head

Easy to test and monitor

Performance Parameters

Parameter Name	Parameter Content
Design & manufacturing standard	API 6A
Product specification level	PSL3G
Product performance requirement	PR1~2F
Material class	DD EE FF HH, in conformity with NACE MR-0175
Temperature class	L~X（–46°C、180°C）
Rated working pressure	20,000psi
Applicable casing	4-1/2"~7"
