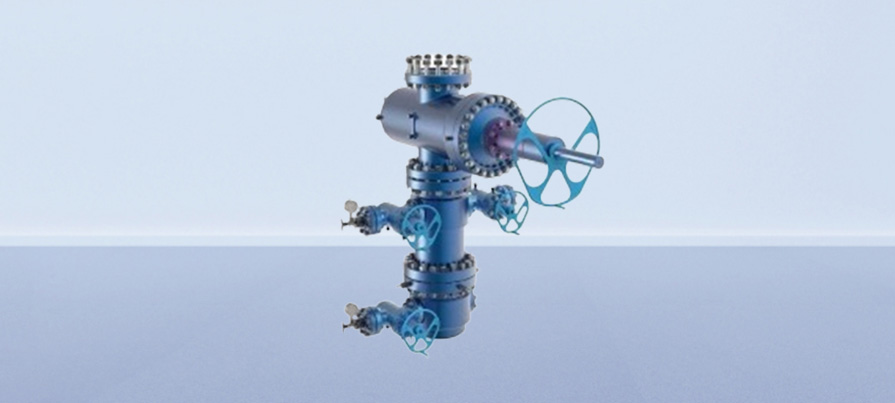

  • Geothermal Wellhead
  • The geothermal wellheads developed by WEFIC have been widely used in Asia & Europe and other regions where geothermal energy is abundant. The common temperature in the area of use is about 200°C.

Product Advantages/Product Highlights

  • High-temperature expansion valves large bore geothermal valves

  • Reliable sealing in high-temperature environments

  • Surface uses specially made high-temperature resistant paint to increase paint adhesion in high-temperature conditions and reduce the chance of surface rusting

  • Flange gasket grooves can use stainless steel overlay welding to reduce the chance of rusting at connections

Performance Parameters

Parameter Name Parameter Content
Principal diameter 6" 8" 10" 12"
Pressure Class600(LB)（2,000psi） Class900(LB)（3,000psi） Class1,500(LB)（5,000psi）
Temperature class 180°C（X Class)~ 345°C (Y Class)
Material class AA~EE
Product specification level PSL1~3G
