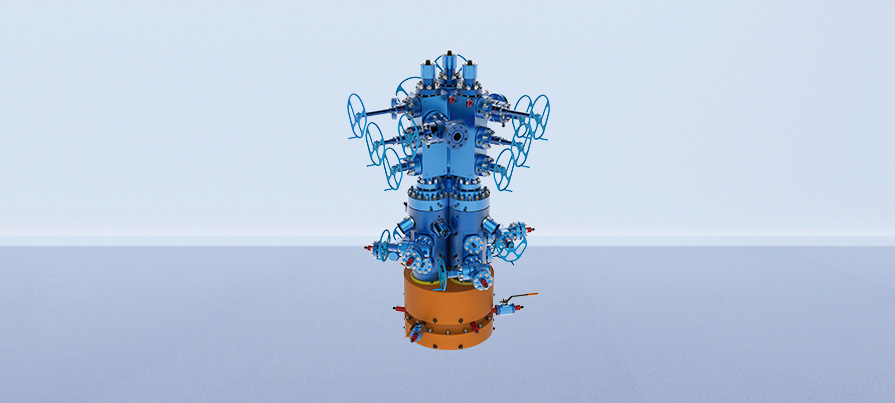

  • Multipartite Modular Wellhead System（MW-I）
  • The Multipartite Modular Wellhead (MMW- I) system is designed for double or triple wellhead configuration. It adopts modular and integrated design concepts and is widely used in multi-stage oil (gas) fields with rich oil reserves, which can greatly facilitate selected layer production and enhance recovery. MMW-I system can be save up to 20% in cost of an individual well.

Product Advantages/Product Highlights

  • Flexibility

    Wide range of casing programs available.

  • Optimized Platform Space

    One, two or three independent wells can be drilled in the platform;

    Modular design, interchangeable components.

  • Reduced Rig Time

    Each well can be maintained separately, with fewer and faster flange connections

    Reduce the frequency of BOP usage and save more time

  • Enhanced Safety

    Operation with BOP or diverter;

    High speed assembly, slip-lock connectors are available.

Performance Parameters

Parameter Name Parameter Content
Casing project 36" x13-3/8" X 9-5/8" X 7" X oil pipe
Working pressure 5,000 psi
Material grade AA、BB、CC、DD、EE、FF、HH
Working temperature PU（-20℃-120℃）
Product specification level PSL1~3G
Performance requirement PR2
Working medium Oil, natural gas, drilling mud
