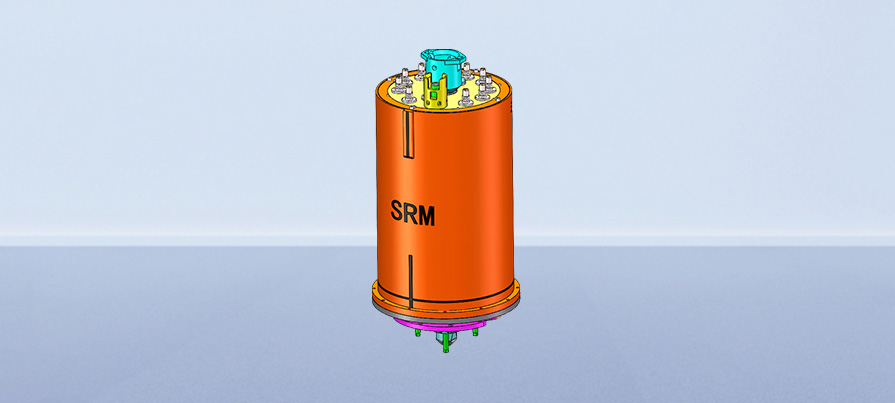

Subsea Routing Module (SRM)
The Subsea Router Module (SRM) serves as the centralized hub for power and communication in subsea oil and gas production. It intelligently distributes, manages, and protects toPSIde-supplied power to ensure reliable and stable electricity delivery to each Subsea Control Module (SCM). Simultaneously, it distributes and coordinates communication signals between the toPSIde Master Control Station (MCS) and individual SCMs, enabling high-speed and reliable toPSIde-to-subsea data exchange.

Product Advantages/Product Highlights

Independent control, protection, alarm, and data monitoring capabilities for each power output.

Performance Parameters

Parameter Name	Parameter Content
Design water depth	2,000m
Design life	20years
Communication methods	Optical fiber, power line carrier (PLC), or DSL, with redundancy
Input voltage	Redundant 300~500VAC
Number of power output channels	≥4 channels @24VDC, ≥4 channels @300-500VAC
Number of communication routing channels	≥4 channels
Control and protection functions	Power supply control and monitoring, automatic short-circuit shutdown, power supply alarm
Monitoring functions	Output power supply can monitor information such as output voltage and output current
