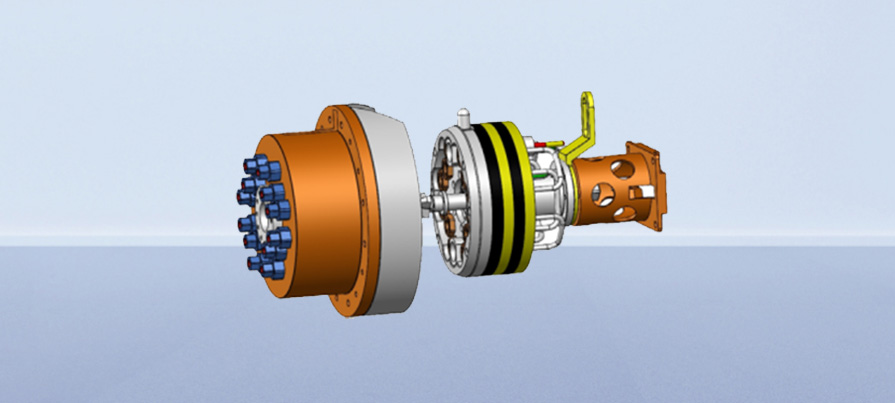

  • Multi Channel Fast Connector Logic Cap（MQC.LGC）
  • LGC (Logic Cap) is a component of the Christmas tree, whose main function is to regulate and control the oil and gas in the well.

Product Advantages/Product Highlights

  • Can withstand high relay rates

    The human head locking mechanism is easy to operate and highly reliable

  • High docking accuracy

    Multi directional, low docking difficulty

  • High success rate of docking

    Equipped with axial and axial position indicators, clearly indicating the working status during the docking process

  • Equipped with secondary unlocking function

    Emergency unlocking is achieved when the mechanism cannot be disconnected normally

Performance Parameters

Parameter Name Parameter Content
Hydraulic pipeline Route 12 1/2"
Mobile weight Kg (air/underwater) 84.8/76.04
Fixed end weight Kg (air/underwater) 80.3/65.6
Locking method Rotate and lock the human character head
Number of locking rings (axial) Class4，Rotate 10 times
Locking torque 1328 N.M (10000psi, axial force 163KN) 1993 N.M (15000psi, axial force 244.5KN)
Normal unlocking torque 1,548 N.M
Secondary release torque 2,400 N.M ~2,500 N.M
Breaking torque 3,038 N.M
