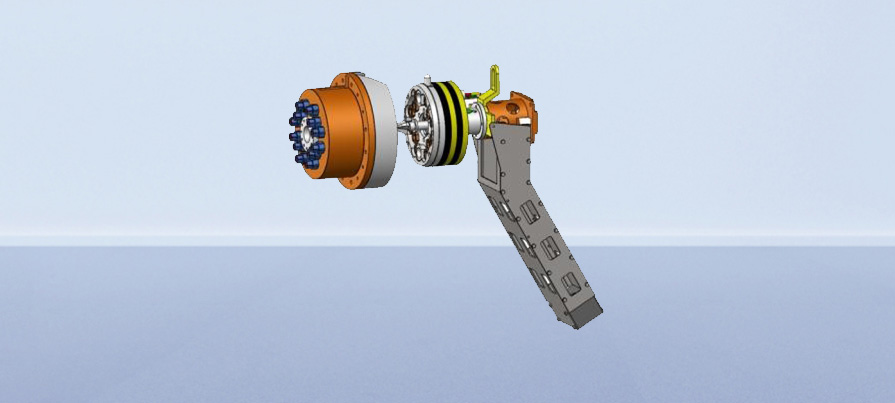

  • Multi-channel Quick Connector SUPPLY （MQC.SUPPLY）
  • MQC · SUPLY is one of the core devices of the SUPLY system, which provides pressure oil and chemical agent connection for the SUPLY system, ensuring the normal operation of the system's functions such as controlling oil flow, regulating oil pressure, and multi section control, achieving high output and stable production.

Product Advantages/Product Highlights

  • Can withstand high relay rates

    Adopting a human head locking mechanism, the operation is simple and the reliability is high

  • Multi directional approach

    Low docking difficulty and high docking accuracy

  • High success rate of docking

    Equipped with axial and axial position indicators, it can clearly indicate the working status during the docking process

Performance Parameters

Parameter Name Parameter Content
Hydraulic pipeline Route 12 1/2"
Mobile weight Kg (air/underwater) 96.7/80.6
Fixed end weight Kg (air/underwater) 80.3/65.6
Locking method Rotate and lock the human character head
Number of locking rings (axial) Class4，Rotate 10 times
Locking torque 1328 N.M (10000psi, axial force 163KN) 1993 N.M (15000psi, axial force 244.5KN)
Normal unlocking torque 1,548 N.M
Secondary release torque 2,400 N.M ~2,500 N.M
Breaking torque 3,038 N.M
