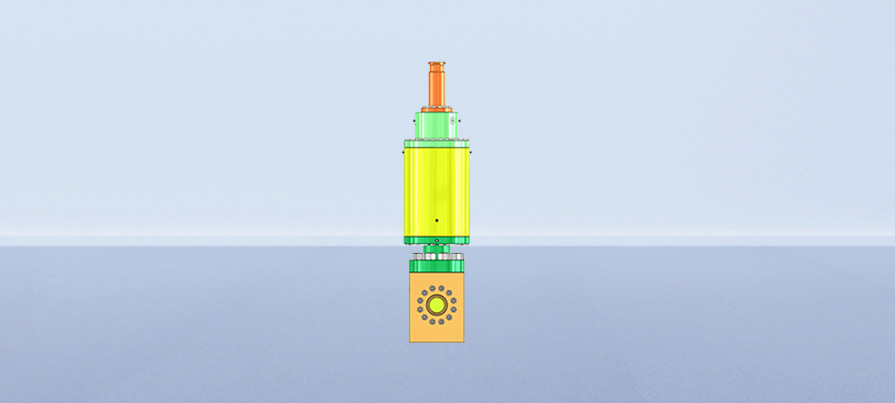

  • Hydraulic Actuator
  • Hydraulic actuators are an indispensable component in subsea oil (gas) trees. They are mainly composed of oil cylinders, pistons, springs, stem, and actuator housings. By applying pressure to the oil cylinder, the valves in the underwater oil production tree can be opened. Once the actuator pressure fails, the valves will automatically close.

Product Advantages/Product Highlights

  • It uses springs with extremely strong elasticity, which can quickly close the valve even when the hydraulic system fails.

  • The piston and the oil cylinder are equipped with a double-sealing structure, which ensures excellent sealing performance.

  • The valve stem seal adopts a V-shaped group seal, forming a multi-layer sealed contact surface, ensuring reliable sealing performance.

Performance Parameters

Parameter Name Parameter Content
Working pressure 5,000psi
Working medium hydraulic oil
Working temperature -4°C~66°C
Product specification level PSL3
Performance requirement PR2
Design water deep 2,000m
Control mode hydraulic control/ override
Design life 30years
