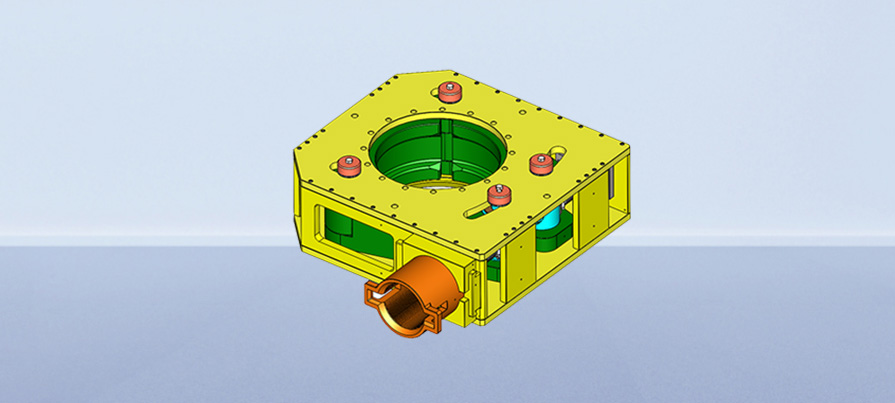

Multibore Connector
Subsea multibore connector is an important component of subsea production systems, mainly used for direct connections between subsea production facilities. The main feature of this connector is that it can accommodate two or more independent flow channels within a set of clamp locking mechanisms, and each channel has an independent sealing unit. It is mainly suitable for complex working scenarios in subsea production systems that require dual channel or multi-channel simultaneous docking and locking.

Product Advantages/Product Highlights

Compact structure, the three-piece clamp structure facilitates installation and maintenance

Reliable sealing performance, “WEFIC”metal sealing rings reduce weight and provide sealing with the smallest diameter.

Enhance operational efficiency with the API 17H standard operating interface, which facilitates quick locking, significantly reduces subsea operation time and improve operation efficiency.

It can accommodate dual-bore and multi-bore channels, and can withstand external bending, twisting, and tensile loads.

Performance Parameters

Parameter Name	Parameter Content
Bore	dual-bore、multi-bore, 3"~6"
Working pressure	5,000psi~10,000psi
Medium	Oil, natural gas
Temperature	L+U (-46℃~121℃)
Material grade	HH
Product specification level	PSL3G
Product performance level	PR2
Water depth	2,000m
Service life	30years
