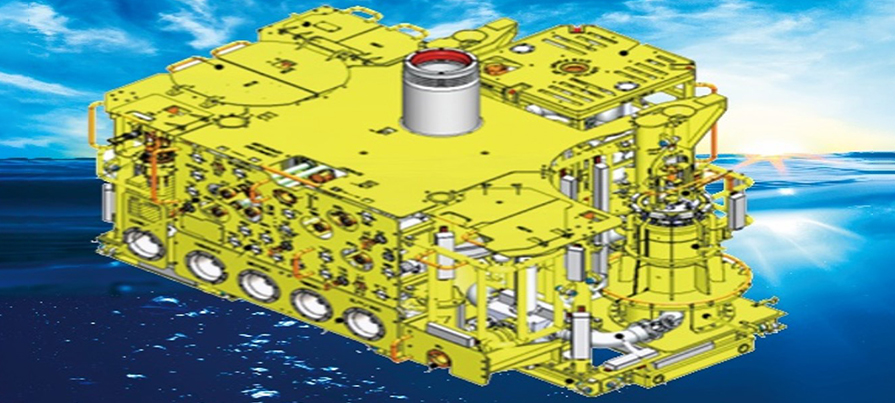

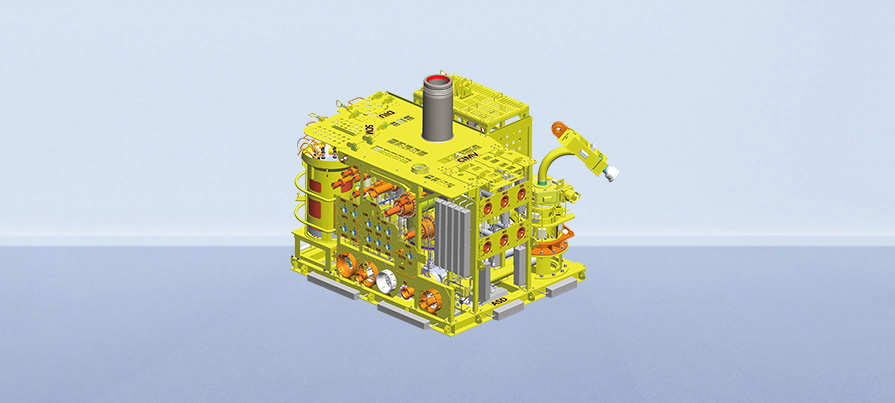

Deep Water Subsea Christmas Tree (Oil/Gas Well)
The Subsea Tree is an indispensable part of the subsea production system. It is mainly composed of the main block of Christmas Tree, production wing valve block, annulus wing valve block, tubing hanger, choke valve, wet gas flow meter, chemical injection metering valve, tree frame, cathodic protection, temperature and pressure sensors, hydraulic control pipelines, etc. It can ensure tubing hanger to support the weight of all tubing strings in the well, seal the annular space between tubing and casing, control and adjust oil and gas production, ensure various downhole operations, and can record oil pressure, casing pressure data and pressure measuring and other daily production management requirement.

Product Advantages/Product Highlights

Adopts integrated design concept, featuring well-modularizedand compact structure.

The signal acquisition and metering module appliesretractable design for easy installation and maintenance.

Enables multi-path downhole hydraulic and electrical signal routing, meeting complex downhole control requirements.

Performance Parameters

Parameter Name	Parameter Content
Applicable water depth	2,000m
Nominal diameter	18-3/4"
Working pressure	10,000PSI
Working temperature	-46°C~121°C
Material class	DD-HH
Product specification level	PSL3/3G
Performance level	PR2
Design life	30years
Control mode	Electro-hydraulic composite
Tree connector	H4 hydraulic connector
