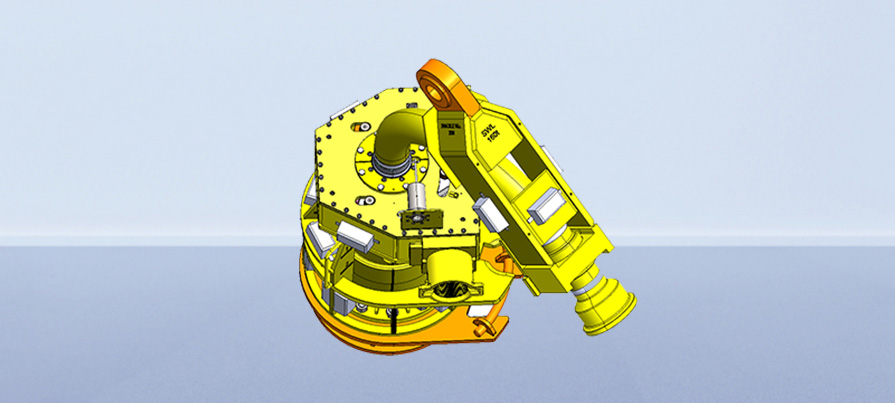

Subsea Flowline Connector
Subsea flowline connectors are an important component of subsea production systems, mainly used for direct connections between subsea production facilities, such as christmas trees and manifolds, and the end of subsea pipelines (plets) and the end of subsea manifolds (PLEM), etc. Subsea flowline connectors can be classified into vertical type and horizontal type according to the installation direction. According to structure, they can be classified into clamp type and claw type.

Product Advantages/Product Highlights

Compact structure, separated clamp structure, easy to install and maintain, reduces the difficulty of subsea operations.

Quick connection, greatly reduces subsea operation time and improve operation efficiency.

High reliability, high–strength and corrosion-resistant materials are used to ensure long-term stable operation in complex deep-sea environments.

Sealing performance, lens-type metal seal, featuring reliable sealing performance under ultra-high pressure, extreme low temperature, and extreme high temperature conditions.

Performance Parameters

Parameter Name	Parameter Content
Bore	6"~12"
Working pressure	10,000psi
Medium	Oil, natural gas
Temperature	L+U（-46°C~121°C）
Material grade	HH
Product specification level	PSL3G
Product performance level	PR2
Water depth	2,000m
Service life	30years
